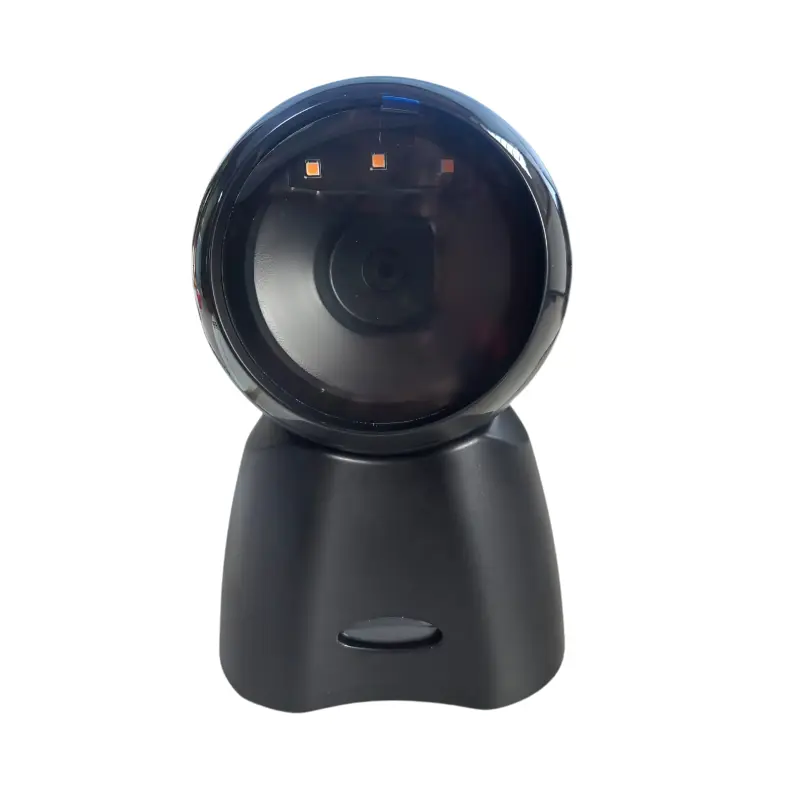

Retails BS-800 2D Image Barcode Scanner
Detailed Description
| Product Name | Retails BS-800 2D Image Barcode Scanner |
| Physical Characteristics | |
| Dimensions | 96.7mm x 104mm x 145mm |
| Weight | 297.5g |
| Voltage | 5±5% VDC |
| Current | 450mA |
| Performance Characteristics | |
| Image Resolution | 640 pixels (H) x 480 pixels (V) |
| Light Source | Red color LED |
| Field of View | 50° |
| Roll / Pitch / Yaw | 58° (Horizontal), 45° (Vertical) |
| Print Contrast | 20% minimum reflective difference |
| Interfaces Supported | USB, RS232 |
| Motion Tolerance | >0.25m/s |
| Symbology Decode Capability | |
| 1D Barcode Support | Codabar, Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite, Interleaved 2 of 5, MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc. |
| 2D Barcode Support | PDF417, QR Code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, TLC 39, DataMatrix, etc. |
| User Environment | |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Shock Specifications | 8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes |
| Ambient Light Immunity | 0-100,000 Lux |
| Decode Ranges | |
| 5 mil (Code 39) | 0mm – 60mm |
| 13 mil (Code 39) | 0mm – 170mm |
| 15 mil (PDF417) | 0mm – 60mm |
| 13 mil (UPC-A) | 0mm – 150mm |
| 30 mil (QR Code) | 0mm – 130mm |
| Additional Notes | Performance may be impacted by barcode quality and environmental conditions. |
Retails BS-800 2D Image Barcode Scanner
Looking for a fast, reliable, and easy-to-use barcode scanner? The Retails BS-800 2D Image Barcode Scanner is the perfect choice! Designed for retail, warehouses, and businesses, this 2D image scanner delivers quick and accurate barcode reading for both 1D and 2D barcodes.
Why Choose Retails BS-800?
Fast & Accurate – Scans barcodes instantly, even in low light.
Versatile Compatibility – Reads QR codes, UPC/EAN, Code 39, DataMatrix, and more.
Easy Connectivity – Supports USB & RS232 for quick plug-and-play setup.
Durable & Reliable – Built to handle tough environments with shock resistance.
Wide Field of View – 50° scanning angle for effortless barcode capture.
Frequently Asked Questions (FAQ)
- What types of barcodes does the Retails BS-800 scan?
This barcode scanner supports both 1D and 2D barcodes, including QR codes, Code 39, Code 128, UPC/EAN, DataMatrix, PDF417, and more. - How does it connect to my system?
It offers USB and RS232 connectivity, making it compatible with most POS systems, computers, and inventory software. - Is it fast?
Yes! With a motion tolerance of >0.25m/s, this 2D image scanner quickly captures barcodes, even with slight movement. - Can it work in low-light conditions?
Absolutely! The Retails BS-800 2D Image Barcode Scanner works in 0-100,000 Lux, ensuring smooth scanning in bright or dim lighting. - Is this scanner suitable for retail and warehouse use?
Yes! It is designed for retail stores, warehouses, logistics, healthcare, and more, providing fast and accurate barcode scanning. - Does it require any software?
No! It is plug-and-play via USB. Some RS232 configurations may need minor setup.
